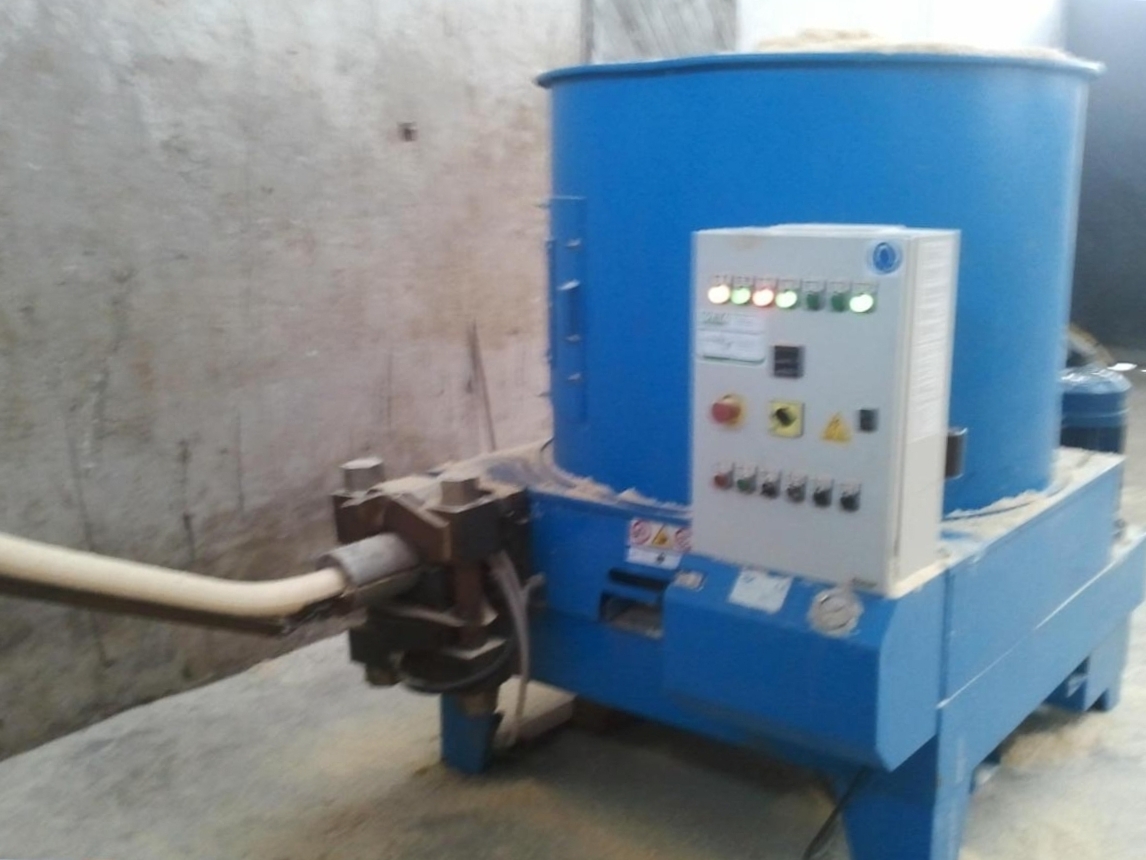

POR Oscar briquetting press 2008yr

Por Oscar hydraulic briquetting of 2008roku 4800mtg

The possibility of production of briquettes on the length of 4cm to 12cm


The unit in continuous operation.


Serviced in the Polish service distributor - a set of invoices

Instructions - DTR

Specifications:

Capacity up to 180kg / h

Number of cycles per minute. : 12

Maximum operating pressure: 150 bar

Briquette length: 80 mm

Hydraulic pump: 75L

Hydraulic squeeze: 1400kg/cm2

Tray diameter: 1200mm

Oil tank capacity: 220L

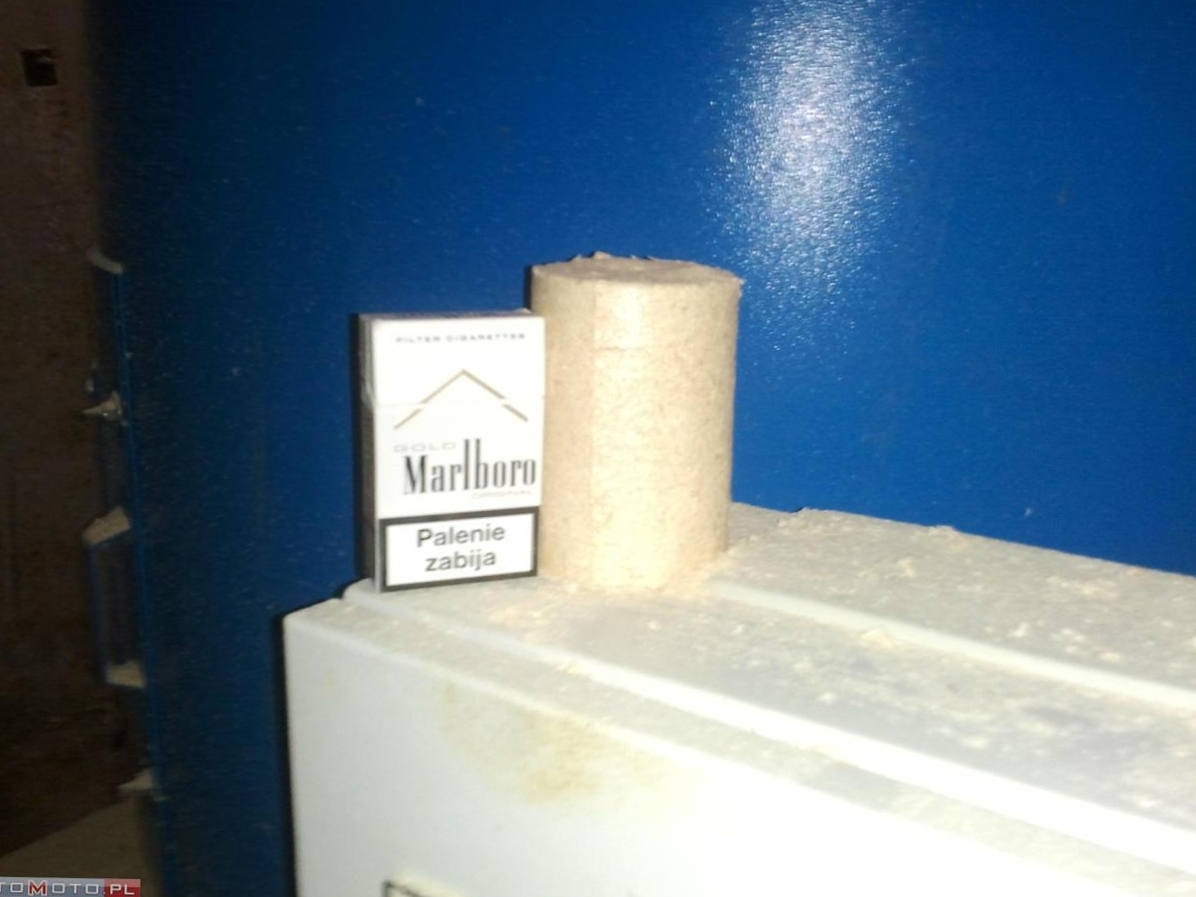

Briquette diameter: 70mm

Motor power: 9.2kW / 12.5HP

Net weight: 1250kg

Dimensions 2095x1300x1700 mm

PRICE 9500 EURO
